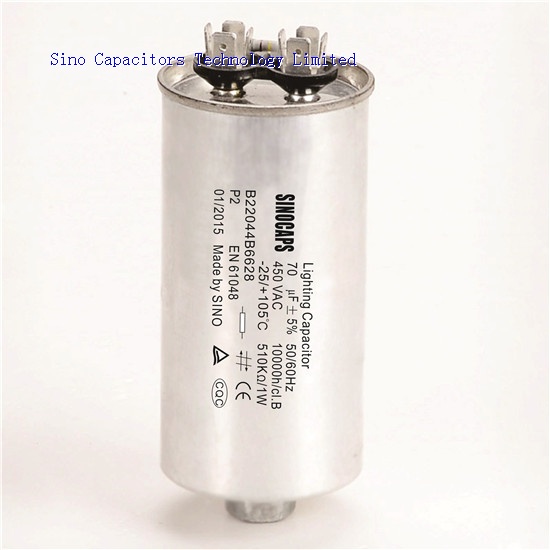

SINO CBB66 Lighting capacitor
SINO #CBB66 Lighting capacitor use thickened metallized polypropylene film as medium. They with low loss, high insulation resistance, self-healing, stable performance, impact resistance and current overload capacity. They are adopted second-generation mechanical explosion-proof design, with higher reliability and outboard discharge resistor.
SINO lighting capacitor especially fit for metal halide lamp, fishing boats, and other start and run the lighting circuit.
MSDS of SINO #CBB66 Lighting capacitor
| Maximal temperature |
Rated Voltage (V AC) |
Capacitance Range（μF） |
Capacitance Tolerance |
Test Voltage |
Loss Tangent |
Operating frequency |
| 70 |
120~540 |
3~100 |
±2% ±5% or Fulfilled upon request |
T-T:2.0Un/2S |
Tanδ≤0.002（100Hz） |
50/60Hz |
| 85 |
| 100 |
T-C:≥2200VAC/2S |
