SINO RCO start capacitor adopted temperature characteristics technology of PTC and thermal protection device. So, it enhance more motor starting torque about 200% to 600%. It’s round bakelite compression sealed case, optional mounting bracket, double quick connect/solder lugs terminals.
The start capacitor will promote motor torque, at the low starting current. It with good insulation, high strength, no leakage, anti-moisture, anti-vibration, and can bear larger external force.
SINO start capacitor use in single-phase AC motor, air conditioning, refrigerator compressor and so on.

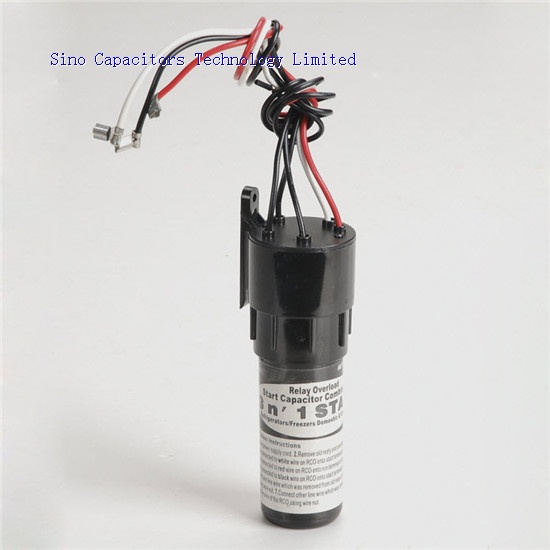

SINO #RCO start capacitor
| Features |
Adopt PTC component, supplying high torque and long operating life. |
| Voltages Ratings |
115V-288V AC |
| Max. Current |
22A |
| Torque Range |
200%-600% |

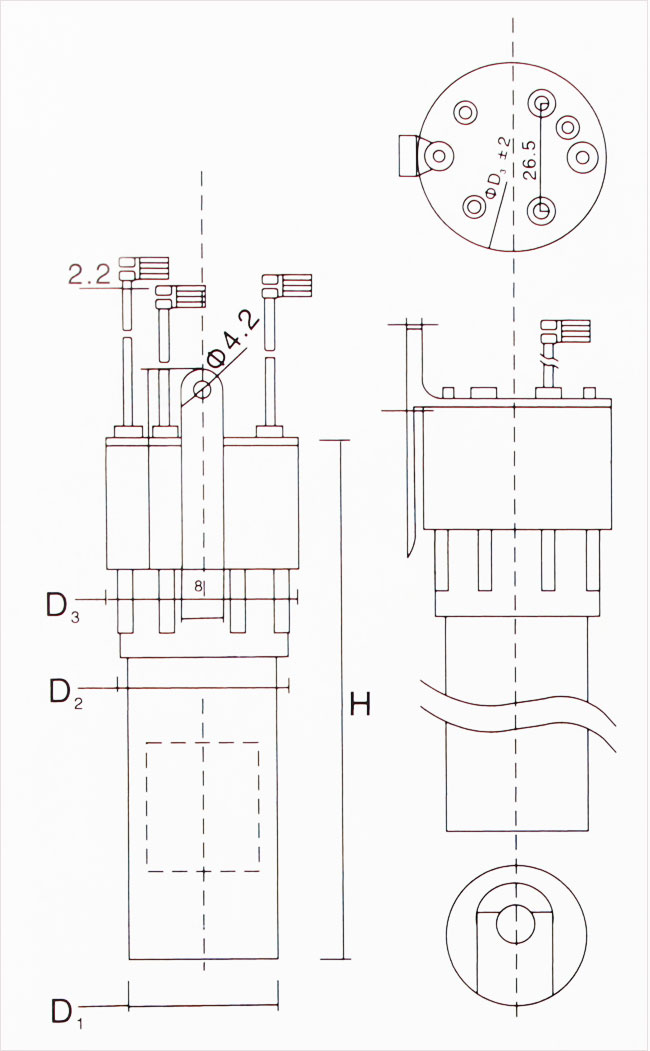

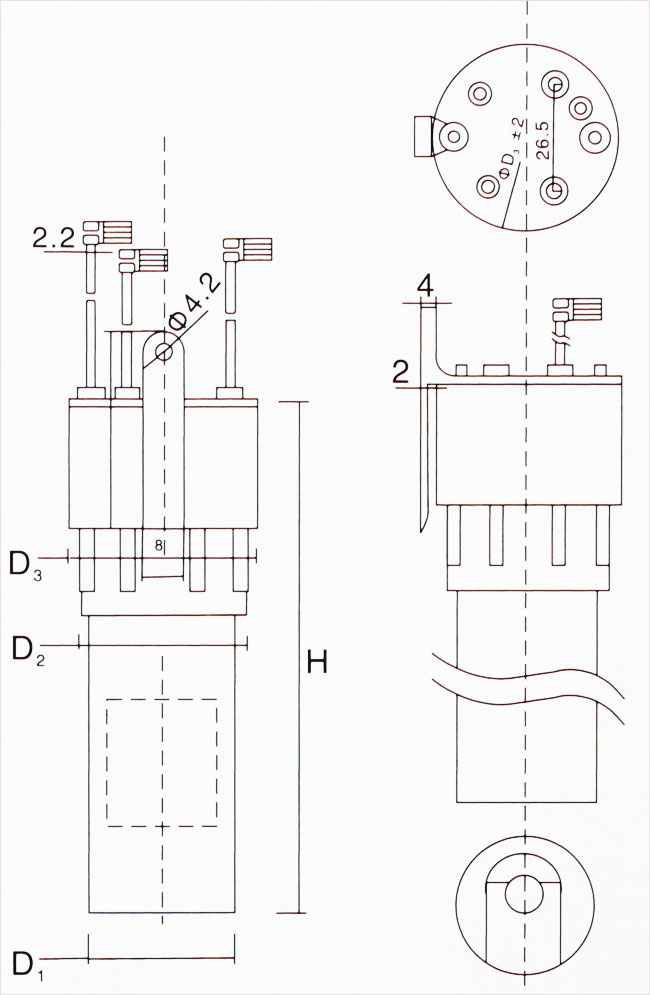

Capacitance and dimension(mm) of SINO #RCO Start capacitor
| Model |
Power(HP) |
D1±1mm |
D2±1mm |
D3±1mm |
H±2mm |
| RCO820 |
1/12~1/8HP |
37 |
45 |
46 |
115 |
| RCO620 |
1/6~1/5HP |
37 |
45 |
46 |
130 |
| RCO420 |
1/3~1/4HP |
37 |
45 |
46 |
130 |
| RCO220 |
1/2HP |
37 |
45 |
46 |
130 |
