SINO SPP start capacitor adopted temperature characteristics technology of PTC and thermal protection device. So, it enhance more motor starting torque about 200% to 600%. It’s round bakelite compression sealed case, optional mounting bracket, double quick connect/solder lugs terminals.
The start capacitor will promote motor torque, at the low starting current. It with good insulation, high strength, no leakage, anti-moisture, anti-vibration, and can bear larger external force.
SINO start capacitor use in single-phase AC motor, air conditioning, refrigerator compressor and so on.

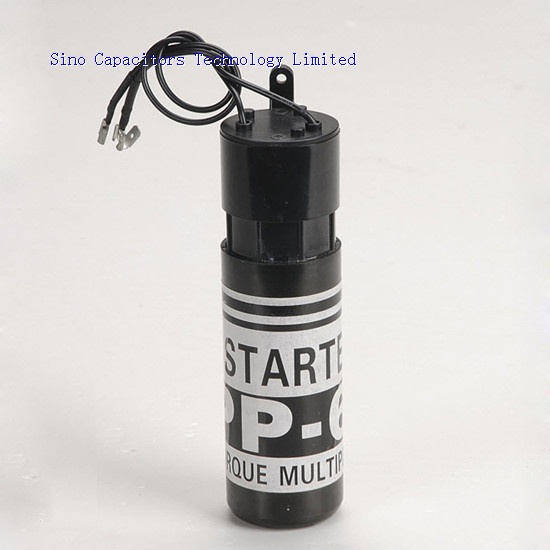

SINO #SPP start capacitor
| Features |
Install the PTC component |
| Voltages Ratings |
115V-288V AC |
| Max. Current |
22A |
| Torque Range |
200%-600% |
Capacitance and dimension(mm) of SINO #SPP Start capacitor
| Type |
D1±1mm |
D2±1mm |
D3±1mm |
H±2mm |
| SPP4 |
37 |
45 |
46 |
115 |
| SPP5 |
37 |
45 |
46 |
130 |
| SPP6 |
46 |
45 |
46 |
155 |
| SPP7 |
46 |
45 |
46 |
155 |
| SPP8 |
46 |
45 |
46 |
155 |
