Products > Film Capacitors > CBB80Lighting Capacitors > Anti-explosion capacitor
Product name : Anti-explosion capacitor
Product No. : 20151151202
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

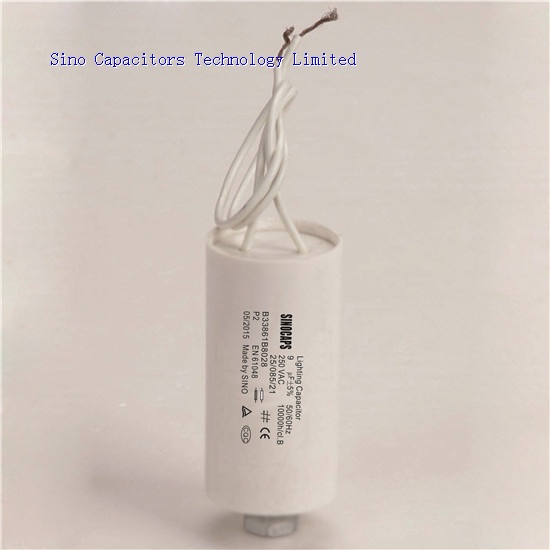

SINO CBB80 Lighting capacitor

SINO #CBB80 Lighting capacitor use thickened metallized polypropylene film as medium. They with low loss, high insulation resistance, self-healing, stable performance, impact resistance and current overload capacity. They are adopted second-generation mechanical explosion-proof design, built-in high reliability automatic explosion-proof device and discharge resistor.

SINO lighting capacitor especially fit for high pressure sodium lamp, mercury lamp, fluorescent lighting, metal halide lamp and so on.

MSDS of SINO #CBB80 Lighting capacitor
Capacitance Range  3μF~60μF
Rated Voltage 250V~450VAC(50/60Hz)
Capacitance Tolerance ±2%±5% or  Fulfilled upon request
Loss Tangent Tgδ≤0.002(50Hz-100Hz)
Standard Temperature -25℃~+70℃、-40℃~+85℃
Climate Class 25/70/21,40/85/21
Examine Voltage Between derivation terminals AC2.00Un 2S no breakdown
Between derivation terminals and shell AC2000V 2S no breakdown
Insulation Resistance Between derivation terminals Rj·C≥3000MΩ.μF
Between derivation terminals and shell Rj≥1000 MΩ
Discharge performance The balance voltage below 50V after 60S no electricity
Executing Standard GB18489, GB/T18504, IEC61048, IEC61049, EN61048, EN1049, UL810
