Product name : AC motor capacitor
Product No. : 201511123747
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
CBB60 Type AC motor run capacitor

Detailed product description:
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area

Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.

Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.


MSDS of SINO Motor run capacitor

 Capacitance Range 1μF~150μF
Rated Voltage 250VAC~500VAC(50/60Hz)
Capacitance Tolerance ±5% or Fulfilled upon request
Loss Tangent Tgδ≤0.002(50Hz-100Hz)
Standard Temperature -25℃~+70℃、-40℃~+85℃
Climate Class 25/70/21, 40/85/21
Test Voltage Between terminals AC≥2.00Un 2S NO BREAKDOWN
Between terminals and case  AC≥2000V 2S NO BREAKDOWN
 Insulation Resistance Between terminals Rj·C≥3000MΩ.μF
Between terminals and case Rj≥1000 MΩ.μF
 Security Level P0, P1, P2
 Executing Standard GB/T3667.1-2005, IEC60252-1:2001, IEC252

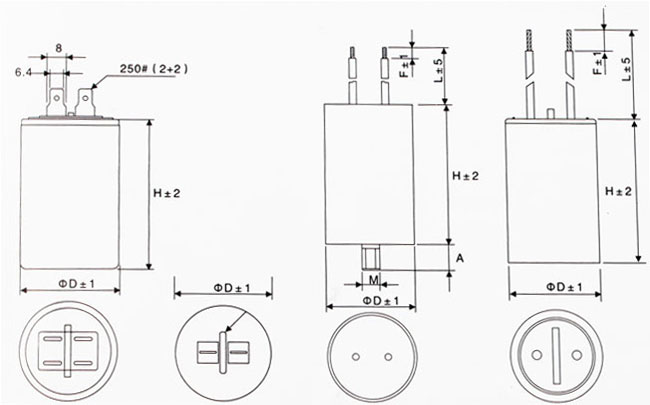

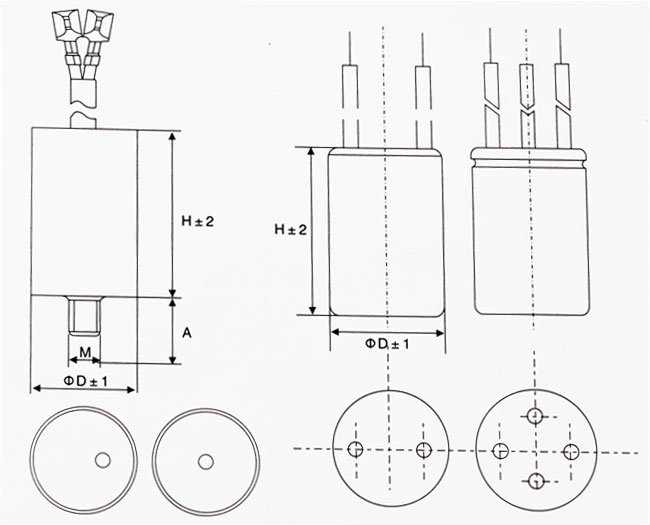

Capacitance and dimension(mm) of SINO Motor run capacitor

Standard Capacity (μF) 250V AC~300V AC       350V AC~400V AC 400V AC~450V AC
D(mm) H(mm)  D(mm)  H(mm)  D(mm) H(mm)
3 25 45 25 45 25 45
4 25 45 25 45 25 45
5 25 45 25 45 34 50
6 25 45 25 65 34 50
7 25 45 25 65 32 60
8 30 50 30 60 32 60
10 30 50 30 60 32 60
12 30 60 32 60 34 60
12.5 30 60 32 60 34 70
13 30 60 32 60 34 70
14 30 60 34 60 38 70
15 32 60 34 60 38 70
16 32 60 34 60 38 70
18 32 60 34 70 40 70
20 32 60 34 74 40 70
25 34 60 38 70 42 70
30 34 70 42 70 42 90
35 42 70 42 70 45 90
40 42 70 45 90 50 90
45 42 70 45 90 50 90
50 45 70 45 90 50 100
55 45 90 50 90 50 100
60 45 90 50 90 50 100
70 45 90 50 100 55 120
75 45 90 50 120 55 120
80 46 95 50 120 55 120
90 50 90 55 120 60 120
100 50 90 55 120 60 120
120 50 120 60 120
150 55 120
Note: Fulfilled upon request.
