SINO CAPACITORS TECHNOLOGY LIMITED

Applications:

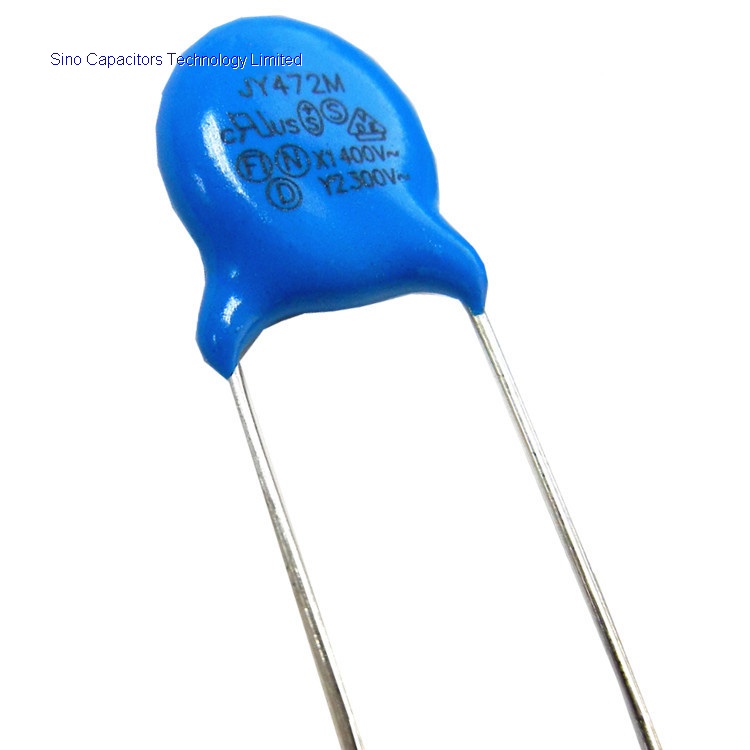

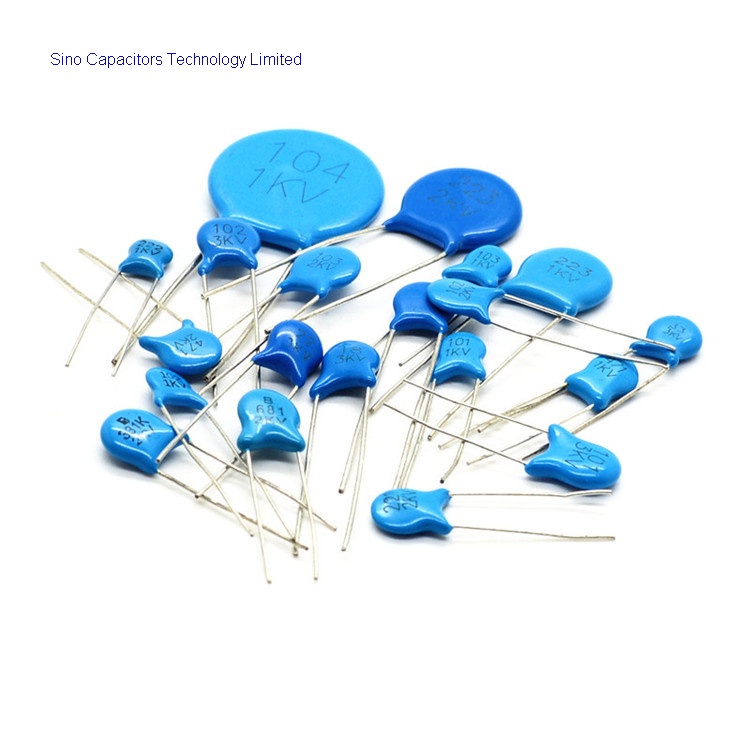

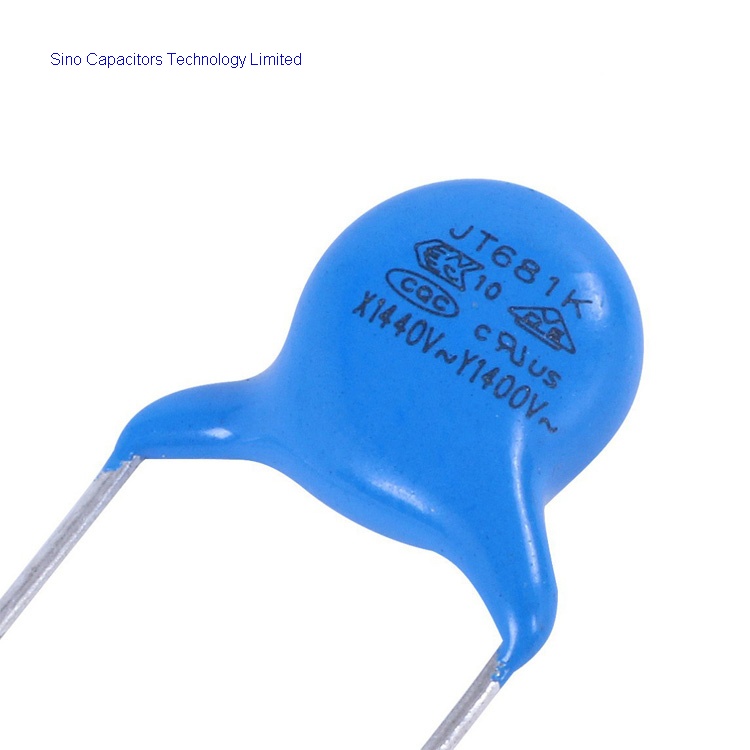

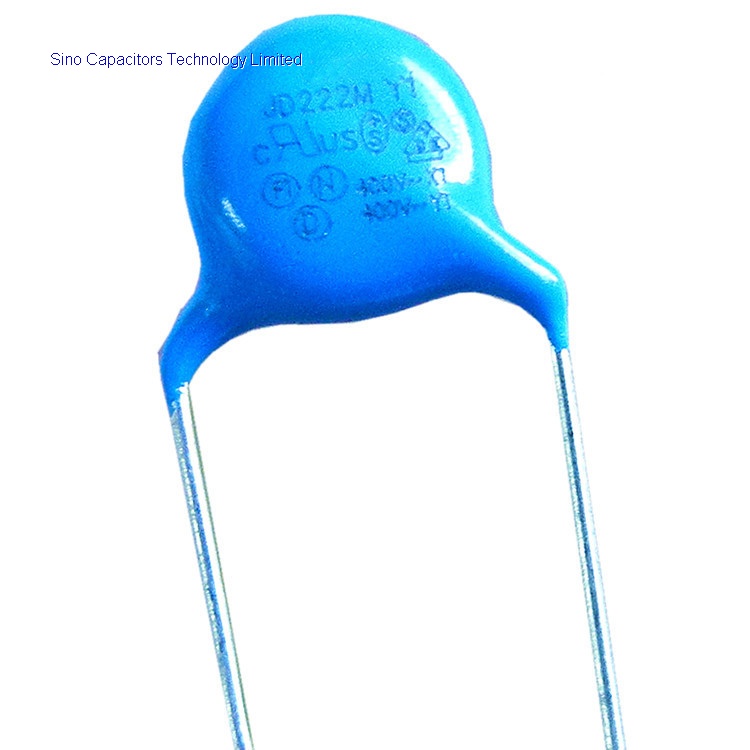

These Ceramic Disc Capacitors are specifically designed for AC applications and meet the safety requirements of 125 ℃ hight temperature resistant ,These capacitors are ideal for line by-pass,coupling and across the line applications.

Feature:

AC,BY-passing,Bridging,Couping,Pulse,Thermostability

SPECIFICATIONS:

1.Operating Temperature:-25℃ to +125℃

25/125/21B

2.Capacitance: Within the tolerance at 1KHZ.1±0.2Vrms,25±2℃

3.Capacitance range: 10pF to 4700pF (X1Y1)

4.Capacitance tolerance:K(±10%) Y5P(B)

M(±20%) Y5U(E) Y5V (F)

5.Rated Voltage :Y1~250VAC/300VAC/400VAC;X1~440VAC

6.Testing Voltage:4000V AC for 1minute. (X1 Y1)

7.Dissipation Factor ( tanδ):Y5P(B)2.5% max at 20±2℃ and 1KHZ,1± 0.2Vrms

Y5U(E)2.5% max at 20±2℃ and 1KHZ,1± 0.2Vrms

Y5V(F)2.5% max at 20±2℃ and1KHZ,1± 0.2Vrms

8.Insulation Resistance:After applying 500V DC for 1 minute. I.R≥10000 MΩ

9.Temperature coefficient: Y5P (B) ±10% (Max)

Y5U(E) +22-56%(Max)

Y5V(F) +22-82%(Max)

10.Insulation resistance

Between lead wire and Body insulation

10GΩ MIN

Measuring voltage: 100VDC

Frequency: 50/60Hz

duration: 60 seconds

leakage current: 5mA max

11.The constituent parts of capacitor
